Can I increase the maximum speed of the WorkBee CNC Machine?
Can I increase the maximum speed of the WorkBee CNC Machine?
Is this a good question?
Score
4
9
5 Answers
Chosen Solution
You can increase the speed of the WorkBee, Ooznest recommends a maximum speed of 2500mm/min.
However, you can increase the speed by adjusting the command below in config.g:
M203 X2500 Y2500 Z2500 ; Set maximum speeds (mm/min)
Was this answer helpful?
Score
1
I modified the Interface Movement Settings which allowed me to increase my X axis speed but my Y axis is still capped.
Is there a way to change it?
Is there also a way to have the interface list its current code settings?
Hi Chris, the interface setting just applys to jogging. How are you trying to move quicker in a job or just jogging?
I am afraid there is no way to display it on the interface.
Jogging.
I see M201 and M203 in the code dictionary but only one was listed in the config file. I added/modified both and now do not remember what the defaults were. 203 seems intermittent.
The X axis did increase its jog speed past 2500 but the longer Y axis did not.
Is there a place to find what the default settings are?
Hi,

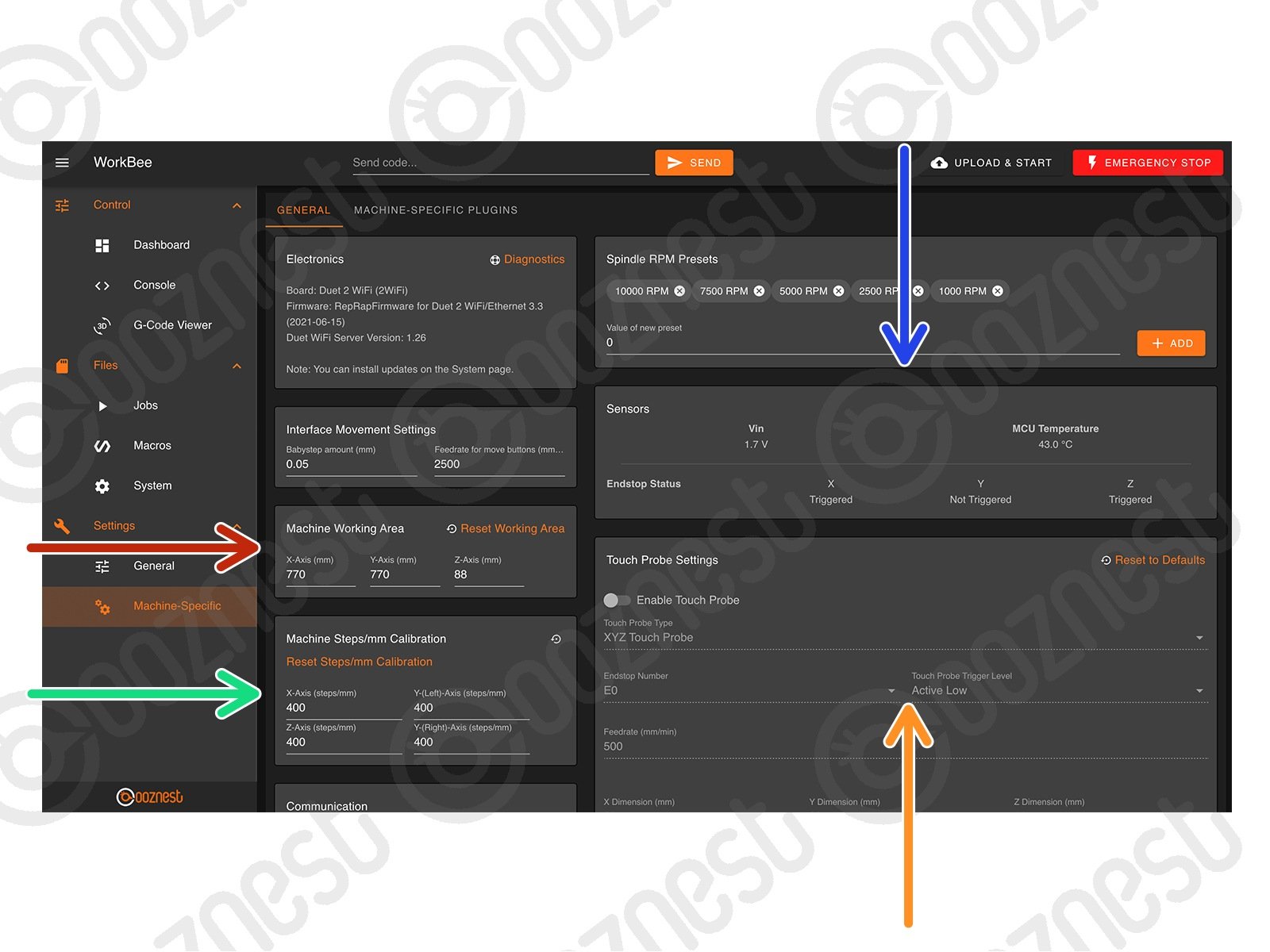

The jog speed is in the interface, see this image: https://d3t0tbmlie281e.cloudfront.net/ig...
2500mm is the maximum the machine will be able to move, even if this setting is higher.
Thanks
Was this answer helpful?
Score
0
The arrows in the image you sent are pointing to the sensors, the working area, the probe and the calibration. I do see the interface movement settings above which i have raised.
My X axis is currently jogging at 5000mm so is there a speed cap solely on the longer axis?
Was this answer helpful?
Score
0
Hi Chris,
The panel above the blue arrow, allows you to change the jog speed.
The limit on all axes, regardless of length, is 2500mm/min.
Was this answer helpful?
Score
0
Hi @robertooznest , @chrisjr28 ,
I think that this topic is very very important for this product. I found the machine speed very limiting the only downside of it so far. I spend really a lot of time watching the machine going at 50% speed of what the router head can handle.
I followed the steps described in this thread and I found myself in the same situation.
Step 1: Edited to M203 X4000 Y4000 Z2500 ; Set maximum speeds (mm/min) the M203 command in the config.g file.
- The X axis jog max speed and job max speed is now 4000 mm/min.
- The Y axis is still capped to 2500 mm/min
- (no real interest in the Z axis)
Step 2: I kept the config.g file with the "new" command and adjusted the parameter from your screenshot --> Interface movement settings to 4000.
- X axis jog and job max speed at 4000 mm/s and Y axis still in capped to 2500 mm/min
I thought that maybe the M203 command has to be entered 3 times in the config.g file but it's just a guess, I am going to try tomorrow.
M203 X4000;
M203Y4000;
M203 Z2500 ;
I think that if we can have this sorted out could be really a game changer for this product.
Many thanks for the support! I will give an updated about the 3 commands try.
Was this answer helpful?
Score
0
I found out! The M203 commands is present in the confi-axes.g file as follows:
M203 X2500 Y2500 Z2500 U2500 ; Set maximum speeds (mm/min)
I modified the X and Y values but was still working for the X axis only. I then modified the U values as well and... worked! I still need to understand what the U parameter is for by the way.
Final answer:
To increase machine speed edit the M203 X4000 Y4000 Z2500 U4000 ; Set maximum speeds (mm/min) command in 0:/sys/config-axes.g file
