Workbee not executing code correctly

Hi,

When I program and export G code from Vectric V carve Pro and upload it to the Workbee, sometimes it does not execute the code correctly. It only executes random X or Y movement within the programmed code, but not everything...

It happens seemingly random and it happens most with the Pocket function, but I have it happen with Profile aswel.

Sometimes changing the starting place fixes it, but not always.

When I run the code through a G code simulator I can verify that the code being generated by Vectric is OK, but the Workbee does not run it correctly.

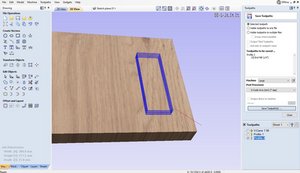

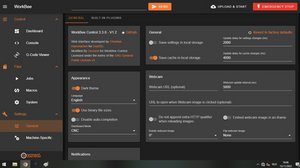

I have attached pictures for reference.

Best regards,

Maarten

=== ===

Block Image

Block Image

Block Image

Answer this question I have this problem too

Is this a good question?

Yes No
Score 0
Add a comment

2 Answers

Filter by:
Most Helpful Newest Oldest
Most Helpful Answer
User avatar

Options

Shouldn't you be using the Ooznest Duet Arcs (mm) (*.gcode) post-processor?

Was this answer helpful?

Yes No
Score 1
Add a comment
User avatar

Options

Hi Peter, I was indeed using the wrong post processor, changing it to the duet arcs fixed it! Thank you!

Was this answer helpful?

Yes No
Score 0
Add a comment
