  1. Remove all Lead-Screw-Caps from the X, Y-Left & Y-Right Axis. You will need to put these back later. So put them in a safe place.
    • Remove all Lead-Screw-Caps from the X, Y-Left & Y-Right Axis.

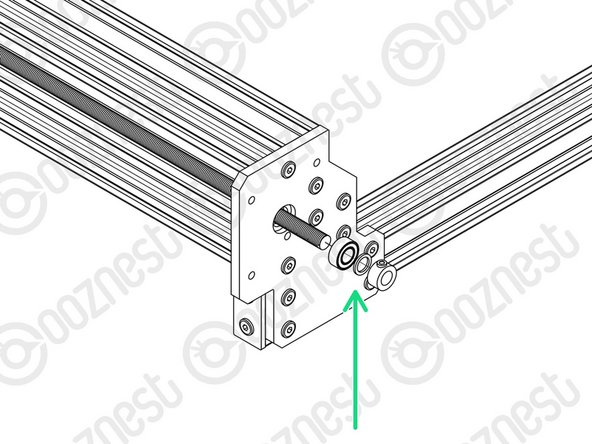

    • You will need to put these back later. So put them in a safe place.

    • From underneath the Lead-Screw-Caps, remove the Clamping-Collars, Bearing-Shims & Flanged-Radial-Bearings.

    • We supply new parts to replace these. So they can be discarded, or kept for spares.

  2. Loosen the Flexible-Coupler from the Stepper-Motor and Lead-Screw on the X, Y-Left & Y-Right Axis.
    • Loosen the Flexible-Coupler from the Stepper-Motor and Lead-Screw on the X, Y-Left & Y-Right Axis.

    • Disconnect and remove the Stepper-Motors, M5-Low-Profile-50mms and 4 x Aluminium-Spacer-40mms.

    • You will need to put these back later. So put them in a safe place.

    • Remove the Clamping-Collars, Bearing-Shim & Flanged-Radial-Bearings.

    • We supply new parts to replace these. So they can be discarded, or kept for spares.

  3. The X-Limit-Switch-Mount is going to be replaced later in the guides.

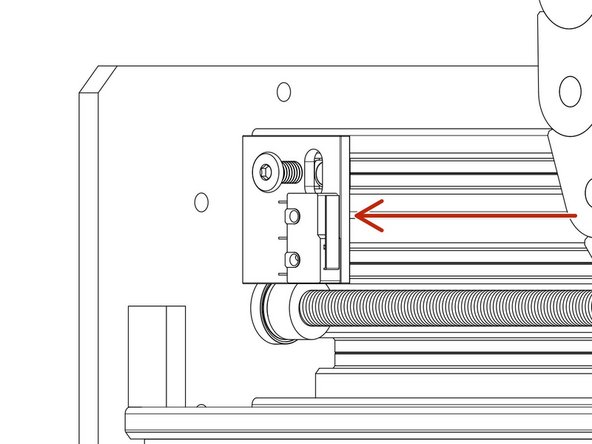

    • The X-Limit-Switch-Mount is going to be replaced later in the guides.

    • Take the X-Limit-Switch-Mount off the machine.

    • Remove the Limit-Switch from X-Limit-Switch-Mount.

    • Leave the Limit-Switch hanging from the X-Gantry.

    • Put the 2 x M3-Plastite-Screw-8mm, M5-Low-Profile-8mm and M5-Drop-In-Tee-Nut in a safe place.

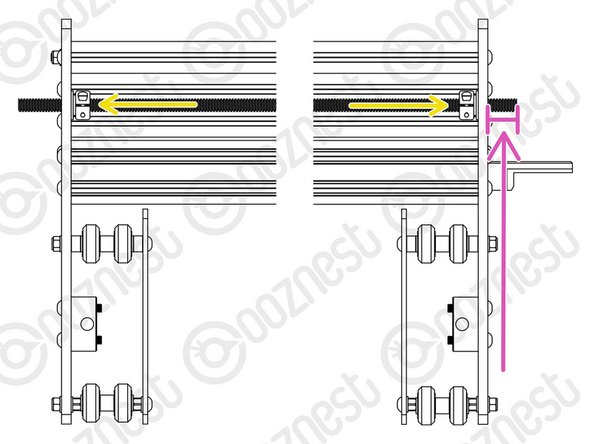

  4. Starting with the X-Axis. Thread back the Lead-Screw so the end of it is on the inside of the extrusion channel. Then slide onto the Lead-Screw a Clamping-Collar - ->- - Rubber-Bushing - ->- - Flanged-Radial-Bearing. Repeat for the opposite end of the Lead-Screw.
    • Starting with the X-Axis. Thread back the Lead-Screw so the end of it is on the inside of the extrusion channel.

    • Then slide onto the Lead-Screw a Clamping-Collar - ->- - Rubber-Bushing - ->- - Flanged-Radial-Bearing.

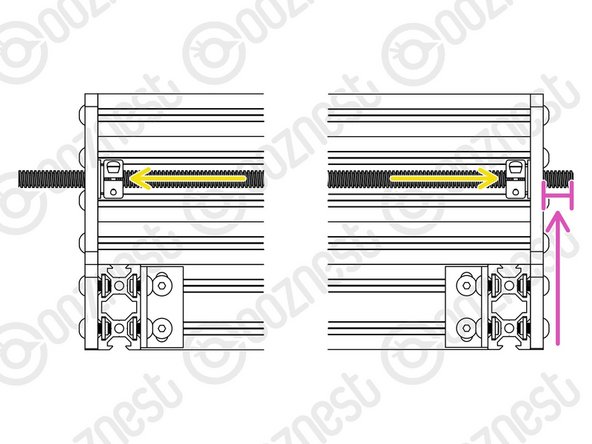

    • Repeat for the opposite end of the Lead-Screw.

    • Adjust the Lead-Screw so there is 14mm protruding from the Stepper-Motor side of the X-Axis.

    • Seat the Flanged-Radial-Bearings into the Y-Carriages, slide the Rubber-Bushing against the Flanged-Radial-Bearings and finally slide the Clamping-Collars so they are against against the Rubber-Bushings.

    • Slightly tighten the Clamping-Collars.

    • Repeat all the above points for Y-Left & Y-Right Axis, like Image 3.

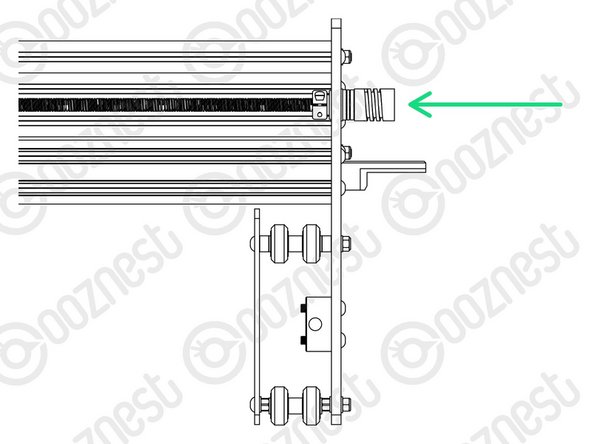

  5. Thrust-Bearings come in 3 parts. Thrust-Bearing-Housing-Washer, Thrust-Bearing-Caged-Roller and Thrust-Bearing-Shaft-Washer The Thrust-Bearing-Housing-Washer and Thrust-Bearing-Shaft-Washer look exactly the same. They are not. The Thrust-Bearing-Shaft-Washer has a smaller internal diameter thus it will be tighter on the Lead-Screw.

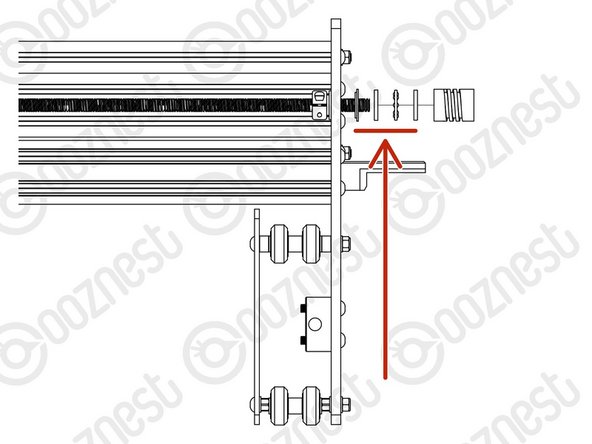

    • Thrust-Bearings come in 3 parts. Thrust-Bearing-Housing-Washer, Thrust-Bearing-Caged-Roller and Thrust-Bearing-Shaft-Washer

    • The Thrust-Bearing-Housing-Washer and Thrust-Bearing-Shaft-Washer look exactly the same. They are not.

    • The Thrust-Bearing-Shaft-Washer has a smaller internal diameter thus it will be tighter on the Lead-Screw.

    • Starting with the X-Axis, on the Stepper-Motor side slide on a Nylon-Shoulder-Washer - ->- - Thrust-Bearing-Housing-Washer - ->- - Thrust-Bearing-Caged-Roller - ->- - Thrust-Bearing-Shaft-Washer

    • The Nylon-Shoulder-Washer seats in the 16mm hole on the Y-Carriage.

    • The Thrust-Bearing-Caged-Roller seats in the grooves on the Thrust-Bearing washers. Look at Image 3 for the correction orientation of the Thrust-Bearing-Caged-Roller.

    • Finally slide on a Flexible-Coupler. While pushing the Flexible-Coupler against the Thrust-Bearing assembly, tighten Flexible-Coupler

    • On the Flexible-Coupler tighten the clamping bolt first and then the grub screw.

  6. Repeat Step 4 for Stepper-Motor side on the Y-Left & Y-Right Axis

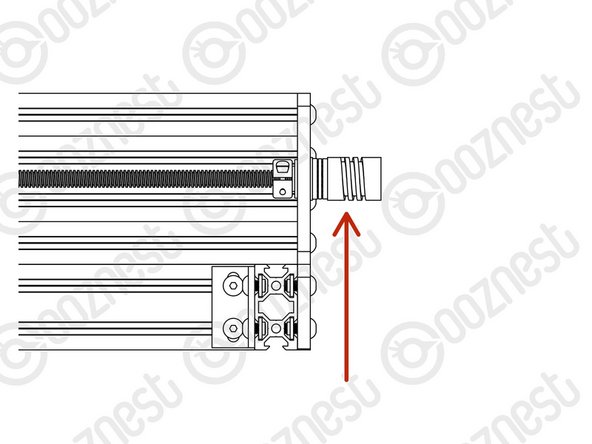

    • Repeat Step 4 for Stepper-Motor side on the Y-Left & Y-Right Axis

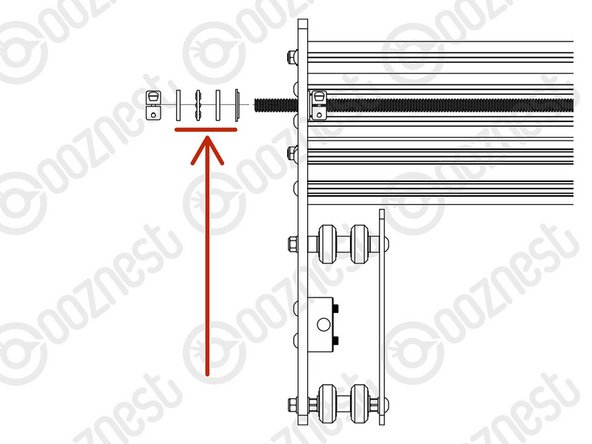

  7. Starting with the X-Axis, on the opposite side to the Stepper-Motor slide on to the Lead-Screw a Nylon-Shoulder-Washer - ->- - Thrust-Bearing-Housing-Washer - ->- - Thrust-Bearing-Caged-Roller - ->- - Thrust-Bearing-Shaft-Washer The Nylon-Shoulder-Washer seats in the 16mm hole on the Y-Carriage. The Thrust-Bearing-Caged-Roller seats in the grooves on the Thrust-Bearing washers. Look at Image 3 for the correction orientation of the Thrust-Bearing-Caged-Roller.
    • Starting with the X-Axis, on the opposite side to the Stepper-Motor slide on to the Lead-Screw a Nylon-Shoulder-Washer - ->- - Thrust-Bearing-Housing-Washer - ->- - Thrust-Bearing-Caged-Roller - ->- - Thrust-Bearing-Shaft-Washer

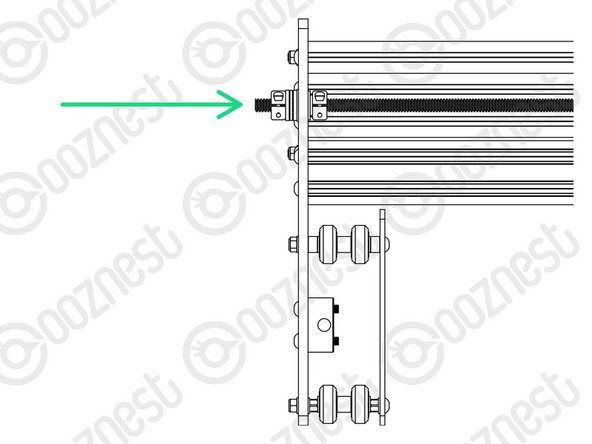

    • The Nylon-Shoulder-Washer seats in the 16mm hole on the Y-Carriage.

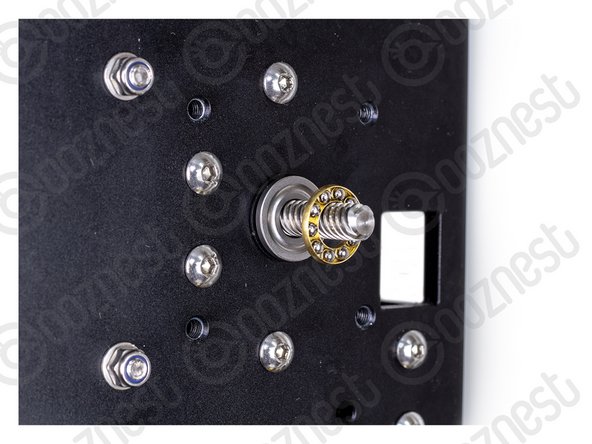

    • The Thrust-Bearing-Caged-Roller seats in the grooves on the Thrust-Bearing washers. Look at Image 3 for the correction orientation of the Thrust-Bearing-Caged-Roller.

    • Finally slide on a Clamping Collar. While pushing the Clamping-Collar against the Thrust-Bearing assembly, tighten the Clamping-Collar.

  8. Repeat Step 6 for Y-Left & Y-Right Axis

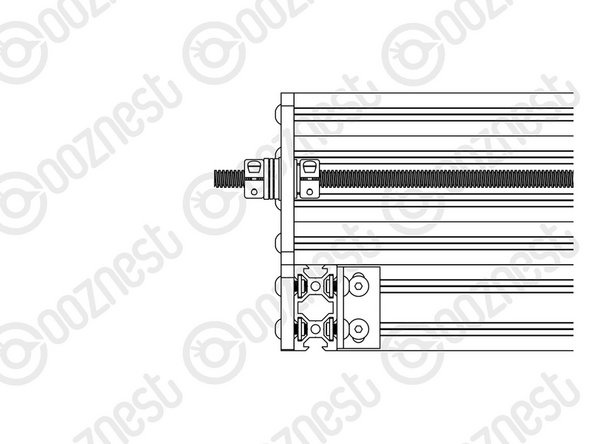

    • Repeat Step 6 for Y-Left & Y-Right Axis

  9. Reattach and reconnect all Stepper-Motors using the previously removed M5-Low-Profile-50mms and 4 x Aluminium-Spacer-40mms On the Stepper-Motor side make sure the Flexible-Coupler grub screw is on the flat portion of the Stepper-Motor shaft.

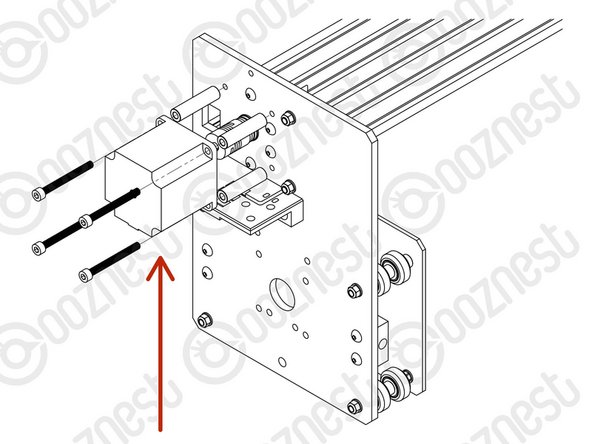

    • Reattach and reconnect all Stepper-Motors using the previously removed M5-Low-Profile-50mms and 4 x Aluminium-Spacer-40mms

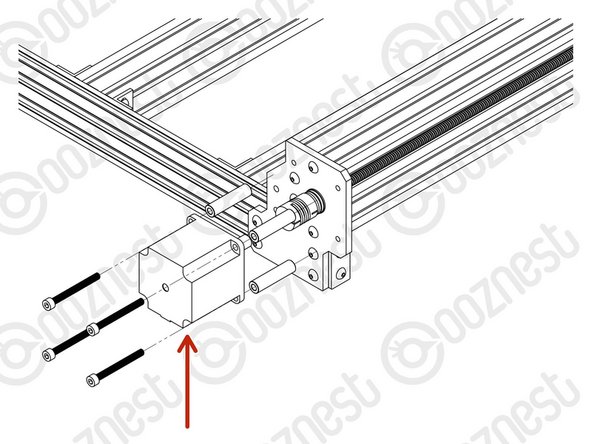

    • On the Stepper-Motor side make sure the Flexible-Coupler grub screw is on the flat portion of the Stepper-Motor shaft.

    • Once in position, tighten the clamping bolt first, then the grub screw.

    • The Lead-Screw side was tightened earlier in this guide.

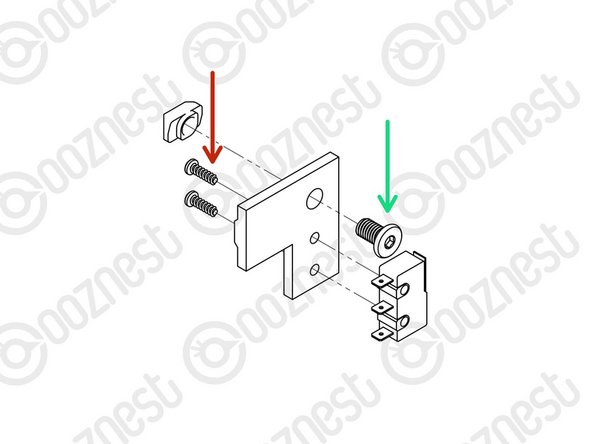

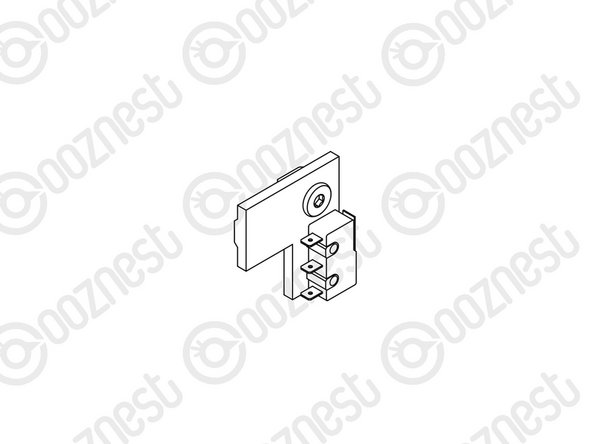

  10. Attach the X-Axis Limit-Switch to the X-Limit-Switch-Mount using the previously removed 2 x M3-Plastite-Screw-8mm. The M3-Plastite-Screw-8mm's go through the X-Limit-Switch-Mount first, then self thread into the Limit-Switch. A Pozi #1 Screwdriver should be used.
    • Attach the X-Axis Limit-Switch to the X-Limit-Switch-Mount using the previously removed 2 x M3-Plastite-Screw-8mm.

    • The M3-Plastite-Screw-8mm's go through the X-Limit-Switch-Mount first, then self thread into the Limit-Switch.

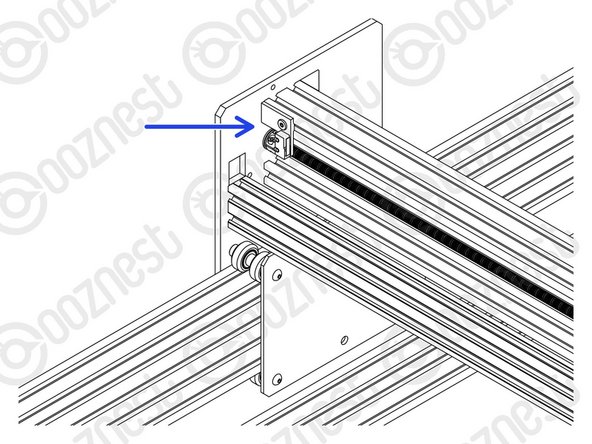

    • A Pozi #1 Screwdriver should be used.

    • The best technique is to thread into the Limit-Switch a small amount, then back out. Then back in further, back out, so on so fourth until the Limit-Switch is secure.

    • Do not over tighten as you can shatter the switch. Make sure the Limit-Switch is orientated correctly.

    • Insert the previously removed M5-Low-Profile-8mm through the hole on the X-Limit-Switch-Mount and slightly thread on the M5-Drop-In-Tee-Nut.

    • Attach the X-Limit-Switch-Mount to the back of the X-Gantry C-Beam. It should be at the left side if looking from the back. The X-Limit Switch-Mount should be up against the Y-Carriage.

  11. Home the machine and use the jog buttons to move the machine roughly into the middle of the working area. Loosen all the Nut-Blocks on the X & Y-Carriages.

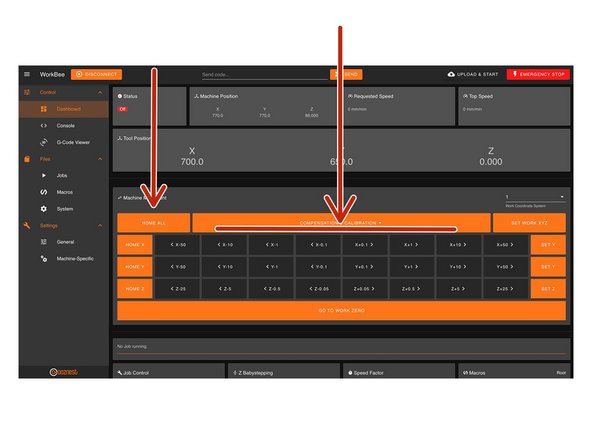

    • Home the machine and use the jog buttons to move the machine roughly into the middle of the working area.

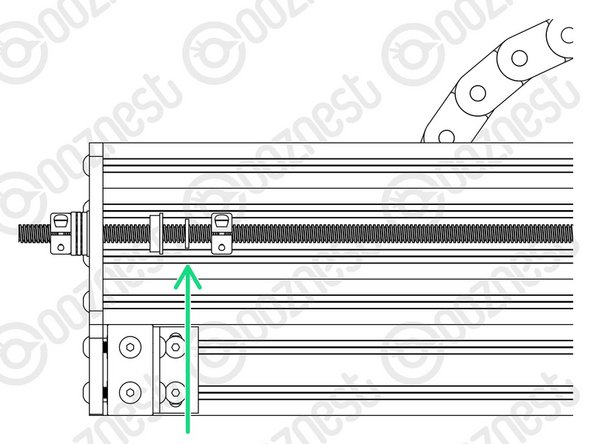

    • Loosen all the Nut-Blocks on the X & Y-Carriages.

    • Loosen the Clamping-Collars that are on the inside of the extrusion channel on the X & Y Axes.

    • Move all Flanged-Radial-Bearings, Rubber-Bushings & Clamping-Collars away from the plates.

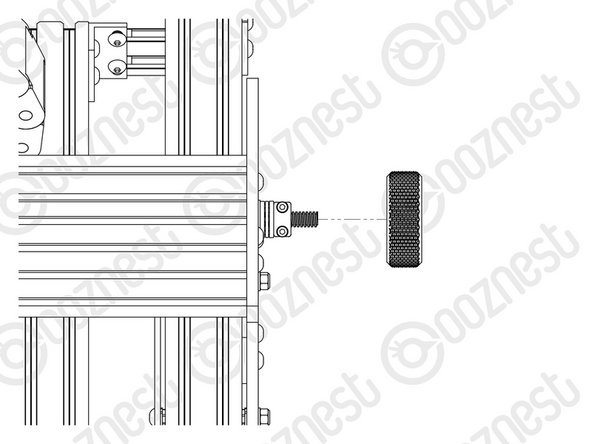

  12. Starting with the X-Axis, thread on the Tensioning-Knob until it is up against the Clamping-Collar. Then loosen the same Clamping-Collar.

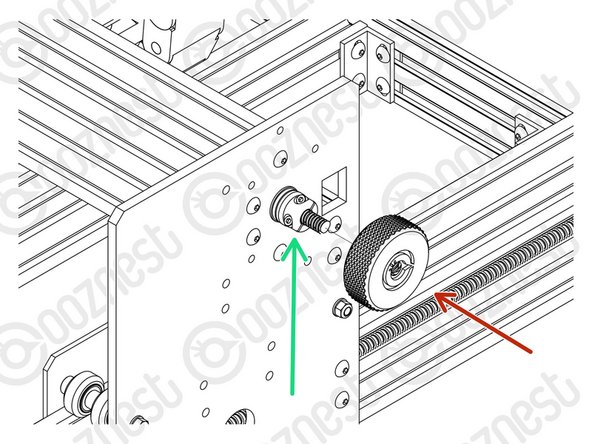

    • Starting with the X-Axis, thread on the Tensioning-Knob until it is up against the Clamping-Collar.

    • Then loosen the same Clamping-Collar.

    • Turn the Tensioning-Knob clockwise, you will feel the Lead-Screw tension build.

    • Keep turning until the Stepper-Motor clicks over.

    • Keep turning, just before the point that the Stepper-Motor clicks over is the correct amount of tension for the Lead-Screw.

    • While at this point of tension, tighten the Clamping-Collar that is next to the Tensioning-Knob.

    • Remove the Tensioning-Knob.

    • Repeat all the above for both Lead-Screws on the Y-Axis.

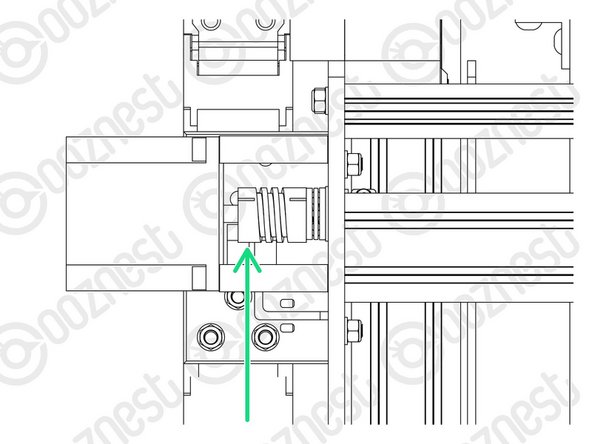

  13. Once all 3 Lead-Screws are tensioned, put back the Flanged-Radial-Bearings, Rubber-Bushings, and Clamping-Collars that are on the inside of the extrusion channel on the X & Y Axes. The Clamping-Collars only need to be pushed lightly up against the Rubber-Bushings & Flanged-Radial-Bearings.

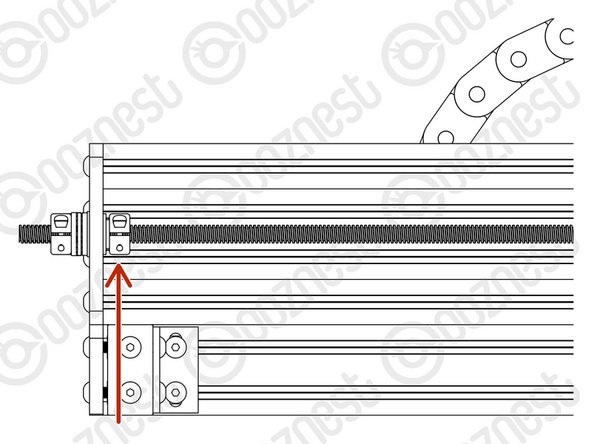

    • Once all 3 Lead-Screws are tensioned, put back the Flanged-Radial-Bearings, Rubber-Bushings, and Clamping-Collars that are on the inside of the extrusion channel on the X & Y Axes.

    • The Clamping-Collars only need to be pushed lightly up against the Rubber-Bushings & Flanged-Radial-Bearings.

    • We need to release any tension inside the Flexible-Couplers.

    • On the Stepper-Motor side of the X & Y-Axis Flexible-Couplers completely loosen the grub screws and clamping bolts.

    • Then completely tighten the same grub screws and clamping bolts.

    • Make sure you do this to the Stepper-Motor side of the Flexible-Coupler.

    • If you loosen the Lead-Screw side you will loose all tension in the Lead-Screws and you will need to redo it.

    • Tighten all the Nut-Blocks on the X & Y-Carriages. While doing so, squeeze the Nut-Blocks together to remove any backlash.

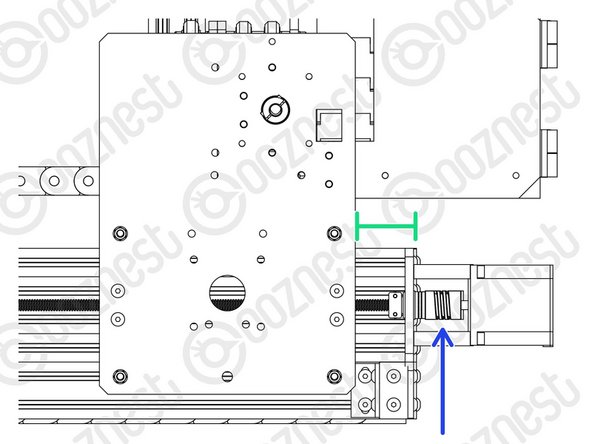

  14. Home the machine. Then turn the machine off.

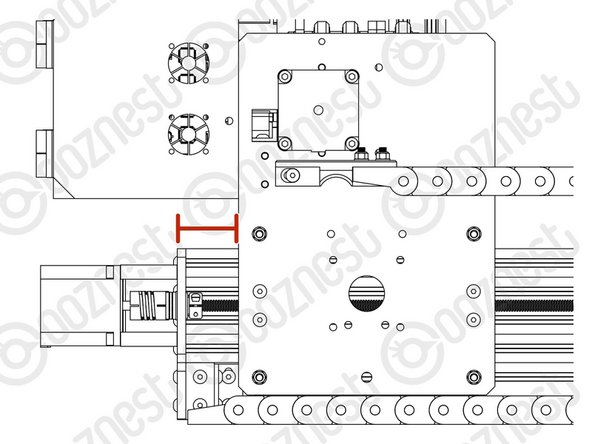

    • Home the machine.

    • Then turn the machine off.

    • On the left Y-Axis (The side with the Limit-Switch) measure the distance between the back of the Y-Carriage and Y-End-Plate.

    • On right Y-Axis measure the same distance.

    • Rotate the Flexible-Coupler by hand until it matches the left Y-Axis.

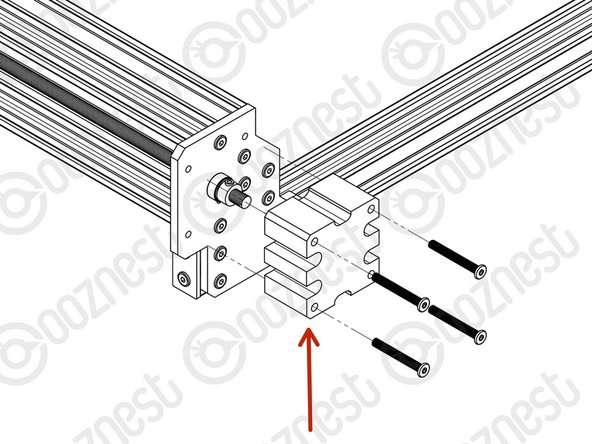

  15. Put back the Lead-Screw-Caps removed in Step 1.
    • Put back the Lead-Screw-Caps removed in Step 1.

Conclusion

Thanks for following the guide. Any issues, please contact us!
