4. X-Gantry Assembly

Attach the V-Slot-2040-750mm to the back two holes on the Y-Plate-Right-Assembly using 2 x M5-Low-Profile-15mm bolts.

Attach the C-Beam-750mm to the four non-threaded holes on the Y-Plate-Right Assembly shown above using 4 x M5-Low-Profile-15mm bolts.

Before the Y-Plate-Left-Assembly can be attached, Tee-Nuts need to be inserted.

The Tee-Nuts should be inserted so that the flat face is facing outwards.

Insert 2 x Tee Nuts in to the front facing top slot, 2 x Tee-Nuts in to the front facing bottom slot and 2 x Tee-Nuts in to the top facing back slot on the C-Beam-750mm.

Slide the X-Carriage-Assembly onto the C-Beam-750mm in the orientation seen above.

Repeat Step 1 for the Y-Plate-Left-Assembly, but do not loosen the M5-Low- Profile-15mm bolts this time.

Place the X-Gantry-Assembly on a flat table, and check that it is flat and square. If it isn’t, loosen the M5-Low-Profile-15mm bolts and re-adjust.

Recheck the bottom Eccentric-Spacer-6mms on the X-Carriage-Assembly to make sure they are touching the rail, there is no wobble, and that the X-Carriage-Assembly runs smoothly along the whole length of the C-Beam-750mm.

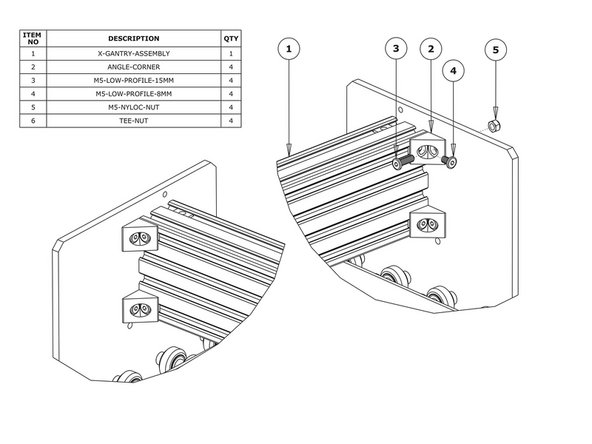

Attach an Angle-Corner to the Y-Plate-Right-Assembly & the front facing top slot of the C-Beam-750mm. A M5-Low-Profile-8mm screws into the Tee-Nut previously inserted, and a M5-Low-Profile-15mm goes though the Angle-Corner and attaches to a M5-Nyloc-Nut on the outside of the Y-Plate-Right-Assembly.

Repeat this for the other 3 Angle-Corners in the positions shown above.
