  1. Attach the V-Slot-2040-750mm to the back two holes on the Y-Plate-Right-Assembly using 2 x M5-Low-Profile-15mm bolts.
    • Attach the V-Slot-2040-750mm to the back two holes on the Y-Plate-Right-Assembly using 2 x M5-Low-Profile-15mm bolts.

    • Attach the C-Beam-750mm to the four non-threaded holes on the Y-Plate-Right Assembly shown above using 4 x M5-Low-Profile-15mm bolts.

    • Loosen the M5-Low-Profile-15mm bolts on the Y-Plate-Left-Assembly by a single full turn (the reason for this will become clear later).

  2. Before the Y-Plate-Left-Assembly can be attached, Tee-Nuts need to be inserted.
    • Before the Y-Plate-Left-Assembly can be attached, Tee-Nuts need to be inserted.

    • The Tee-Nuts should be inserted so that the flat face is facing outwards.

    • Insert 2 x Tee-Nuts in to the front facing top slot, 2 x Tee-Nuts in to the front facing bottom slot.

    • Onto each end of the X-ACME-Screw slide on a 8mm-Lock-Collar, 8mm-Shim, and a 688ZZ-Bearing in this order. Make sure the flat side of the 8mm-Shim is against the 688ZZ-Bearing.

    • Slide the X-Carriage-Assembly onto the C-Beam-750mm in the orientation seen above.

    • Repeat Step 1 for the Y-Plate-Left-Assembly, but do not loosen the M5-Low- Profile-15mm bolts this time.

    • Recheck the bottom Eccentric-Spacer-6mms on the X-Carriage-Assembly to make sure they are touching the rail, there is no wobble, and that the X-Carriage-Assembly runs smoothly along the whole length of the C-Beam-750mm.

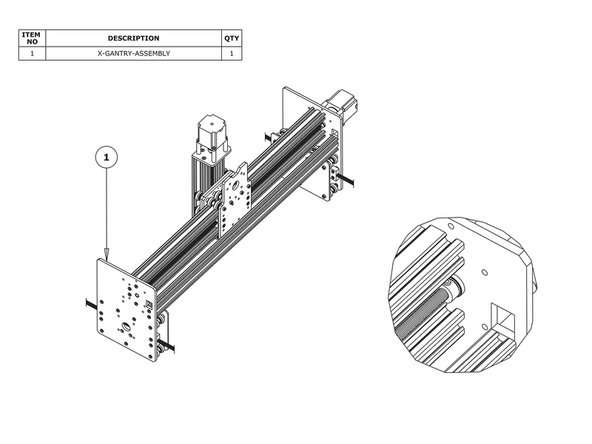

  3. Adjust the X-ACME-Screw so it is touching the NEMA 23-Stepper-Motor shaft. Position the Flexible-Coupler so it is half on the X-ACME-Screw and half on the NEMA23-Stepper-Motor shaft. Once in position, tighten the grub screws on the Flexible-Coupler.
    • Adjust the X-ACME-Screw so it is touching the NEMA 23-Stepper-Motor shaft. Position the Flexible-Coupler so it is half on the X-ACME-Screw and half on the NEMA23-Stepper-Motor shaft. Once in position, tighten the grub screws on the Flexible-Coupler.

    • Make sure one is on the flat portion of the motor shaft.

    • Slide the 688ZZ-Bearings along the X-ACME-Screw until they seat in the inset on the Y-Plate-Left or Right depending on which side they are on. Then slide the 8mm-shim onto the bearings, and finally slide the 8mm-Lock-Collars so they are firmly against the 8mm-Shim and lock them in place using the grub screw on the side.

    • In Step 1, the six M5-Low-Profile-15mm bolts were left a full turn from tight, these can now be fully tightened. Doing this will remove any play that may be present from in this section.

    • While doing this also place the X-Gantry-Assembly on a flat table, and check that it is flat and square. If it isn’t undo some of the M5- Low-Profile-15mm bolts and adjust it.

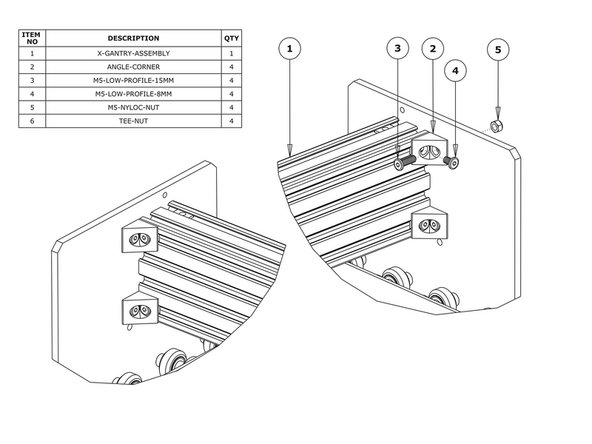

  4. Attach an Angle-Corner to the Y-Plate-Right-Assembly & the front facing top slot of the C-Beam-750mm. A M5-Low-Profile-8mm screws into the Tee-Nut previously inserted, and a M5-Low-Profile-15mm goes though the Angle-Corner and attaches to a M5-Nyloc-Nut on the outside of the Y-Plate-Right-Assembly.
    • Attach an Angle-Corner to the Y-Plate-Right-Assembly & the front facing top slot of the C-Beam-750mm. A M5-Low-Profile-8mm screws into the Tee-Nut previously inserted, and a M5-Low-Profile-15mm goes though the Angle-Corner and attaches to a M5-Nyloc-Nut on the outside of the Y-Plate-Right-Assembly.

    • Repeat this for the other 3 Angle-Corners in the positions shown above.

Conclusion

Thanks for following the guide. Any issues, please contact us!
