  1. With Extrusion G (V-Slot-2020 - 368mm, 493mm or 618mm depending on your enclosure size),  secure an End-Cap to both ends of the extrusion using a M5-Button-Head-Bolt-8mm.
    • With Extrusion G (V-Slot-2020 - 368mm, 493mm or 618mm depending on your enclosure size), secure an End-Cap to both ends of the extrusion using a M5-Button-Head-Bolt-8mm.

    • Repeat this step for all four V-Slot 2020 extrusions of the same length.

  2. Join the extrusions from the previous step to Extrusion H (V-Slot-2020-506mm) using the previously assembled Corner-Joining-Plates. Repeat this step for all four corners and repeat again to make a second door frame.
    • Join the extrusions from the previous step to Extrusion H (V-Slot-2020-506mm) using the previously assembled Corner-Joining-Plates.

    • Repeat this step for all four corners and repeat again to make a second door frame.

    • Before adding the final side, this would be the time to add the panel material.

  3. Using M5-Drop-In-Tee-Nuts and M5-Button-Head-Bolt-10mm, secure the Door Handle to Extrusion H at a height of your preference. Repeat this step for the second door frame.

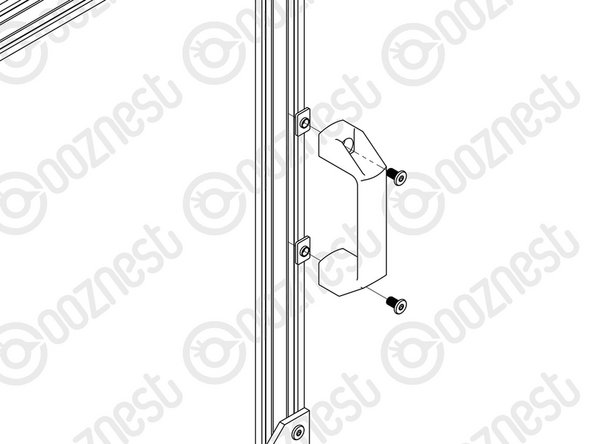

    • Using M5-Drop-In-Tee-Nuts and M5-Button-Head-Bolt-10mm, secure the Door Handle to Extrusion H at a height of your preference.

    • Repeat this step for the second door frame.

  4. Place two Door-Hinges 50mm in from the edge of the Corner-Joining-Plate on Extrusion H opposite to the Door-Handle. Place a third Door-Hinge in the middle.

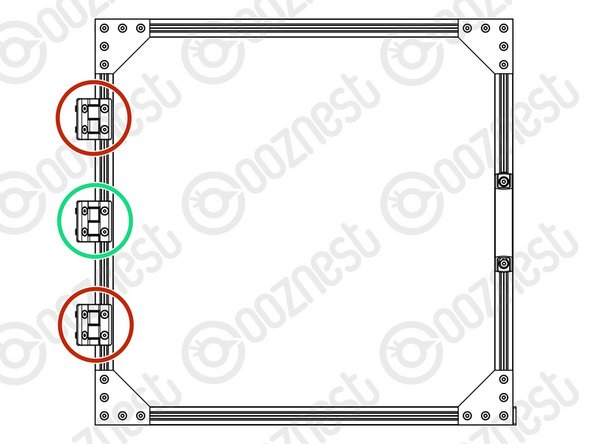

    • Place two Door-Hinges 50mm in from the edge of the Corner-Joining-Plate on Extrusion H opposite to the Door-Handle.

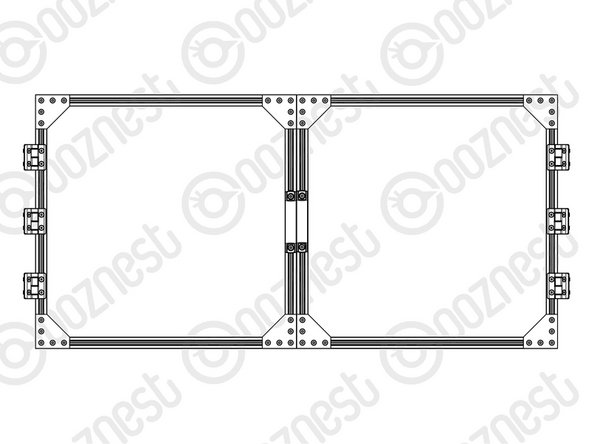

    • Place a third Door-Hinge in the middle.

    • Repeat for the second door frame so there is a mirrored set of doors.

    • You should now have two doors that look like Image 2.

Conclusion

Thanks for following the guide. Any issues, please contact us!
